Efficiently analyzing complex circuits often presents a significant challenge for engineers and students alike. Manually calculating the equivalent resistance or capacitance in series-parallel combinations can be tedious, prone to errors, and exceptionally time-consuming, particularly when dealing with intricate networks containing numerous components. However, the advent of sophisticated computational tools has revolutionized this process. This article delves into the functionality and advantages of series-parallel calculators, exploring their practical applications in various fields of electrical engineering and beyond. Furthermore, we will examine the underlying principles that govern their operation, highlighting the mathematical algorithms employed to ensure accuracy and efficiency. These calculators provide a significant leap forward in simplifying complex circuit analysis, allowing engineers to focus on higher-level design considerations rather than getting bogged down in laborious manual calculations. Consequently, they represent an invaluable asset in both educational and professional settings, significantly accelerating the design and troubleshooting process for a wide range of electronic systems.
Moreover, the utilization of a series-parallel calculator extends far beyond simple resistance and capacitance calculations. Indeed, these tools are often equipped to handle a broader range of circuit parameters, including inductance, impedance, and admittance. This versatility is crucial for analyzing alternating current (AC) circuits, which incorporate the effects of frequency and phase shifts. In addition, many advanced calculators incorporate sophisticated features such as the ability to handle circuits with dependent sources, allowing for the precise analysis of more complex configurations often encountered in integrated circuits and other high-density electronic systems. Consequently, this increased computational power allows for more accurate simulations and predictions of circuit behavior, leading to improved design robustness and reduced time-to-market for new products. Furthermore, many software-based calculators offer graphical user interfaces (GUIs), making them incredibly intuitive and user-friendly, even for individuals with limited prior experience in circuit analysis. This user-friendly design ensures accessibility and ease of use across a wide spectrum of skill levels, ultimately maximizing the overall efficiency of the design and verification process. Therefore, these calculators contribute not only to efficiency but also to increased accessibility and user comprehension.
Finally, the impact of series-parallel calculators extends beyond individual efficiency gains. Their widespread adoption leads to a collaborative environment within engineering teams, fostering better communication and shared understanding of circuit designs. By providing a standardized and readily available tool for circuit analysis, these calculators eliminate discrepancies that might arise from manual calculations, ensuring consistency and accuracy across the entire project lifecycle. In addition, the reduced time spent on manual calculations allows engineers to dedicate more time to innovative design and problem-solving, potentially leading to breakthroughs and advancements in various technological fields. This increased focus on higher-level design considerations promotes a more holistic and strategic approach to circuit development, resulting in more reliable, efficient, and cost-effective systems. Ultimately, the accessibility, versatility, and efficiency provided by these calculators contribute not just to improved individual productivity but also to a more robust and collaborative engineering process, fostering innovation and accelerating technological progress. The implications are significant for the entire industry, promising a future characterized by faster development cycles and more sophisticated electronic systems.
Introduction to Series-Parallel Calculators
Understanding the Basics of Series and Parallel Circuits
Before diving into the specifics of series-parallel calculators, let’s refresh our understanding of series and parallel circuits. These are fundamental concepts in electronics, forming the building blocks for more complex circuits. In a series circuit, components are connected end-to-end, forming a single path for current to flow. This means the current is the same throughout the entire circuit. However, the voltage is divided across each component, with the total voltage being the sum of the individual voltage drops. Think of it like a single-lane road – all traffic must travel the same path.
Conversely, a parallel circuit has components connected across each other, providing multiple paths for current to flow. The voltage is the same across each component in a parallel circuit, as they are all connected directly to the voltage source. However, the current is divided among the branches, with the total current being the sum of the currents in each branch. Imagine this as a multi-lane highway; traffic can choose different routes to reach the same destination.
Series-parallel circuits combine both series and parallel configurations, leading to more complex current and voltage distributions. Analyzing these circuits requires a systematic approach, and this is where series-parallel calculators become incredibly useful. These calculators simplify the process of determining total resistance, total current, and individual voltage drops across components within a combined series-parallel network, eliminating the need for manual calculations and reducing the potential for human error.
Why are Series-Parallel Calculators Important?
Manually calculating the equivalent resistance, current, and voltage in complex series-parallel circuits can be time-consuming and prone to errors, especially with numerous components. A small mistake in one calculation can cascade, leading to significantly inaccurate results. Series-parallel calculators provide a streamlined and accurate solution. They automate the process, making circuit analysis faster and more efficient, saving valuable time and effort for engineers, technicians, and students alike. Accurate calculations are crucial in various applications, from designing electronic devices to troubleshooting existing systems. An incorrect calculation can lead to component failure, system malfunction, or even safety hazards.
Key Features and Capabilities
A typical series-parallel calculator offers a user-friendly interface to input component values (resistance, voltage, current). The calculator then applies the relevant formulas to determine the equivalent resistance of the entire circuit, and the individual currents and voltages across each component. Some advanced calculators might include features such as circuit diagrams or the ability to handle more complex configurations beyond simple series and parallel arrangements. The results are often displayed in a clear and organized format, often including a table summarizing the key parameters for each component.
| Component | Resistance (Ω) | Voltage (V) | Current (A) |
|---|---|---|---|
| R1 | 100 | 5 | 0.05 |
| R2 | 200 | 10 | 0.05 |
| Total | 300 | 15 | 0.05 |
This table provides a sample of how the results might be displayed. Note that the specific features and capabilities can vary depending on the software or hardware calculator used.
Understanding Series Circuits and Their Calculations
Series Circuits: A Simple Explanation
In a series circuit, the components—resistors, capacitors, inductors, or even light bulbs—are connected end-to-end, forming a single, continuous path for the electric current to flow. Think of it like a single lane road: the current has only one route to take. This simplicity makes series circuits relatively easy to analyze, but it also means that a failure in any one component will disrupt the entire circuit, causing the current to stop flowing. This “all or nothing” characteristic is a key feature of series circuits and something to keep in mind when designing or troubleshooting electrical systems.
Calculating Total Resistance in Series Circuits
One of the most fundamental calculations in series circuit analysis involves determining the total resistance (RT). Unlike parallel circuits, where the total resistance is always less than the smallest individual resistance, the total resistance in a series circuit is simply the sum of all individual resistances. This is because the current faces the resistance of each component sequentially. The more components you add in series, the more resistance the current encounters, leading to a higher total resistance. This straightforward relationship makes calculating the total resistance remarkably simple. Let’s illustrate with an example.
Imagine a circuit with three resistors: R1 = 10 ohms, R2 = 20 ohms, and R3 = 30 ohms. To find the total resistance (RT), we simply add the individual resistances:
RT = R1 + R2 + R3 = 10Ω + 20Ω + 30Ω = 60Ω
This means the circuit behaves as if it contains a single 60-ohm resistor. This total resistance is crucial for determining other circuit parameters, such as the current flowing through the circuit and the voltage drop across each component.
Understanding Voltage and Current in Series Circuits
In a series circuit, the current (I) is the same throughout the entire circuit. Since there’s only one path, the same amount of current flows through each component. This is in contrast to parallel circuits, where the current splits among the branches. However, the voltage (V) is divided among the components. The voltage drop across each resistor is proportional to its resistance, following Ohm’s Law (V = IR). This means that a larger resistor will have a larger voltage drop across it.
Let’s use the previous example. If a 12-volt battery is connected to the series circuit with 60Ω total resistance, the current (I) can be calculated using Ohm’s Law:
I = V/RT = 12V / 60Ω = 0.2A
Since the current is the same throughout the circuit, 0.2A flows through each resistor. The voltage drop across each resistor can then be calculated using Ohm’s Law:
| Resistor | Resistance (Ω) | Current (A) | Voltage Drop (V) |
|---|---|---|---|
| R1 | 10 | 0.2 | 2 (10Ω * 0.2A) |
| R2 | 20 | 0.2 | 4 (20Ω * 0.2A) |
| R3 | 30 | 0.2 | 6 (30Ω * 0.2A) |
| Total | 60 | 0.2 | 12 |
Notice that the sum of the individual voltage drops equals the total voltage supplied by the battery (2V + 4V + 6V = 12V). This is a fundamental principle of Kirchhoff’s Voltage Law.
Understanding Parallel Circuits and Their Calculations
1. Introduction to Parallel Circuits
In a parallel circuit, multiple components—like resistors, capacitors, or inductors—are connected across each other, sharing the same voltage. This is in contrast to a series circuit where components are connected end-to-end, sharing the same current. Imagine several roads branching off from a highway; each road receives the full highway’s traffic (voltage) but carries its own portion of the total volume (current). This analogy illustrates a key characteristic of parallel circuits: each branch operates independently of the others.
2. Basic Calculations in Parallel Circuits (Resistors)

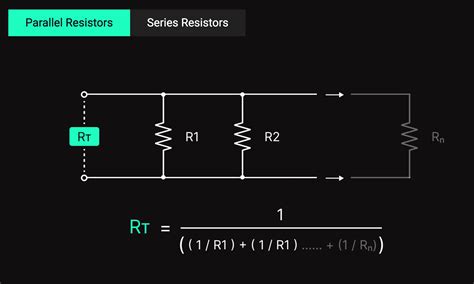

For resistive parallel circuits, calculating the total resistance (RT) is crucial. Unlike series circuits where resistances simply add, the reciprocal of the total resistance equals the sum of the reciprocals of the individual resistances. The formula is: 1/RT = 1/R1 + 1/R2 + 1/R3 + … where R1, R2, R3, etc., are the individual resistances. Once you’ve calculated 1/RT, remember to invert the result to find RT. The total current (IT) in a parallel circuit is the sum of the currents in each branch (I1 + I2 + I3 + …), and the voltage (V) is the same across each branch.
3. Advanced Concepts and Considerations in Parallel Circuit Calculations
While the basic calculations are relatively straightforward, several advanced considerations can significantly impact the accuracy and understanding of parallel circuit behavior. These include dealing with more than just resistors, handling unequal voltage drops (though ideally minimal), and the impact of component tolerances. When dealing with a mixed parallel circuit containing different types of components (resistors, capacitors, inductors), analyzing the circuit requires more sophisticated techniques like complex impedance calculations, often using phasor diagrams or circuit simulation software. Each component will contribute differently to the overall impedance, and the total impedance of the parallel circuit is less than the smallest individual impedance. Consider a parallel circuit with a resistor and a capacitor; the impedance will be frequency-dependent due to the capacitor’s behavior. The impedance will be lower at higher frequencies and higher at lower frequencies.
Furthermore, while the ideal parallel circuit shows the same voltage across all branches, in reality, small voltage drops can occur due to wire resistance and internal resistance within the components. These drops are generally negligible unless dealing with high currents or long wires. However, in precision applications, these minute differences need to be considered. Finally, component tolerances also play a role. Resistors, for example, rarely have exactly their nominal value. The variations in component values can lead to slight deviations from the calculated total resistance and current distribution. To account for this in critical designs, error analysis should be incorporated, considering the tolerance range of each component to determine the possible range of the overall circuit behavior.
Example Table: Impact of Component Tolerances
| Nominal Resistance (Ω) | Tolerance (%) | Minimum Resistance (Ω) | Maximum Resistance (Ω) |
|---|---|---|---|
| 100 | 5 | 95 | 105 |
| 220 | 10 | 198 | 242 |
This table illustrates how 5% and 10% tolerances on resistors can lead to a range of actual resistance values, affecting the overall parallel circuit’s performance.
Understanding Resistance in Series Circuits
When resistors are connected in series, the current flows through each resistor sequentially. Imagine a single lane highway – the traffic (current) has only one path to follow. This means the current is the *same* through every resistor in the series connection. However, each resistor impedes the flow of current to a certain degree, resulting in a voltage drop across each component. The total resistance of the circuit is simply the sum of the individual resistances. This is a fundamental concept: the more resistors you add in series, the greater the total resistance, and consequently, the smaller the current flowing through the circuit for a given applied voltage. This is analogous to adding more toll booths on our highway; each booth adds to the overall travel time (resistance), slowing down the traffic flow (current).
Understanding Resistance in Parallel Circuits
In contrast to series circuits, parallel circuits offer multiple pathways for current to flow. Think of this as a multi-lane highway: the traffic (current) can split up and travel through different lanes simultaneously. Each resistor in a parallel circuit has its own individual path, meaning the voltage across each resistor is the *same*. However, the current flowing through each resistor will be different, depending on the resistance of that particular branch. The total current is the sum of the currents in each branch. The total resistance is calculated using a reciprocal formula: 1/Rtotal = 1/R1 + 1/R2 + 1/R3 + … . This means adding more resistors in parallel actually *reduces* the overall resistance of the circuit, allowing more current to flow for a given voltage. Adding more lanes to our highway reduces the overall congestion and speeds up the traffic.

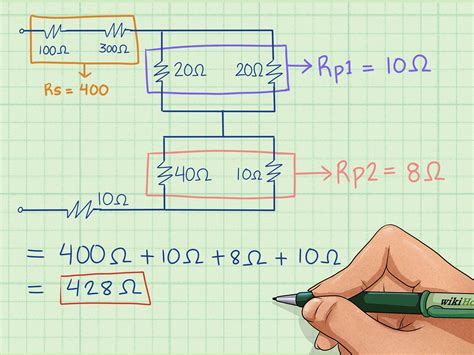

Calculating Total Resistance in Series-Parallel Combinations
Many circuits incorporate both series and parallel connections, making the calculation of total resistance a bit more involved but still entirely manageable. The key is to break down the circuit step-by-step, simplifying sections until a single equivalent resistance is obtained. Start by identifying sections that are purely series or purely parallel, calculating their equivalent resistances, then moving on to the next level of complexity, always combining simplified segments until you arrive at the overall equivalent resistance of the entire circuit. This methodical approach ensures accuracy and prevents errors.
Applying Series-Parallel Calculations: A Detailed Example
Let’s consider a circuit with three resistors: R1 = 10 ohms, R2 = 20 ohms, and R3 = 30 ohms. Suppose R1 and R2 are connected in parallel, and this parallel combination is then connected in series with R3. To find the total resistance, we first calculate the equivalent resistance of the parallel combination of R1 and R2.
Using the parallel resistance formula: 1/Rparallel = 1/R1 + 1/R2 = 1/10 + 1/20 = 3/20. Therefore, Rparallel = 20/3 ohms ≈ 6.67 ohms.
Now, this equivalent parallel resistance (Rparallel) is in series with R3. The total resistance (Rtotal) is the sum of these two resistances: Rtotal = Rparallel + R3 = (20/3) + 30 = 110/3 ohms ≈ 36.67 ohms.
This illustrates the stepwise approach. A more complex circuit may require more steps of series and parallel simplification, but the underlying principles remain consistent. Careful organization and clear labeling of each step will greatly aid in preventing errors.
| Resistor | Value (ohms) |
|---|---|
| R1 | 10 |
| R2 | 20 |
| R3 | 30 |
| Rparallel (R1 | |
| Rtotal | 36.67 |
Working with Complex Series-Parallel Networks
As circuit complexity increases, involving many resistors arranged in intricate series-parallel combinations, a systematic approach becomes crucial. Techniques such as redrawing the circuit to highlight series and parallel sections, using appropriate simplification rules, and employing circuit simulation software can be extremely beneficial. Remember, accuracy is paramount; taking your time and carefully checking your calculations at each step will ensure reliable results and a deep understanding of the circuit’s behavior.
Utilizing a Series-Parallel Calculator: A Step-by-Step Approach
1. Understanding Resistance and Circuit Types
Before diving into calculations, it’s crucial to grasp the fundamental concepts of resistance and how it behaves in series and parallel circuits. Resistance, measured in ohms (Ω), opposes the flow of electric current. In a series circuit, components are connected end-to-end, meaning the current flows through each component sequentially. The total resistance is simply the sum of individual resistances. Conversely, in a parallel circuit, components are connected across each other, providing multiple pathways for the current. The total resistance is less than the smallest individual resistance.
2. Identifying Series and Parallel Configurations
Accurately identifying whether resistors are connected in series or parallel is the first step. In a series connection, the same current flows through each resistor, while in a parallel configuration, the voltage across each resistor is the same. Carefully examine the circuit diagram to determine how the resistors are wired. Look for points where the current splits (parallel) or continues along a single path (series). Sometimes circuits combine both series and parallel arrangements, requiring a methodical approach to solve.
3. Simplifying Complex Circuits
Many circuits involve a mix of series and parallel connections. To solve these, you’ll need to break down the circuit into smaller, manageable sections. Start by identifying the simplest series or parallel groupings within the larger circuit. Calculate the equivalent resistance for each of these smaller sections. Then, redraw the simplified circuit, replacing the grouped resistors with their equivalent resistance values. Repeat this process until the entire circuit is reduced to a single equivalent resistance.
4. Using a Series-Parallel Calculator
Numerous online calculators and software applications are available specifically designed for simplifying series and parallel circuits. These calculators often provide a user-friendly interface where you input the resistance values of individual components and select their configuration (series or parallel). The calculator then automatically computes the total equivalent resistance. Many also include features for calculating other circuit parameters such as current and voltage.
5. Advanced Applications and Troubleshooting
While basic series-parallel calculations focus on finding total resistance, the applications extend significantly. Understanding equivalent resistance allows for the calculation of other circuit parameters like current using Ohm’s Law (V=IR, where V is voltage, I is current, and R is resistance). Once the total resistance is known, you can determine the current flowing through the circuit if the voltage source is specified. Furthermore, analyzing individual branch currents in parallel circuits requires applying Kirchhoff’s Current Law (KCL), stating that the sum of currents entering a junction equals the sum of currents leaving. This is crucial in circuits with multiple branches and varying resistances. Troubleshooting circuit malfunctions often involves systematically identifying the source of the problem by checking individual resistances against expected values and calculating expected voltage drops across each component. Discrepancies can pinpoint faulty components. For example, if a resistor shows significantly higher resistance than expected, it might be overheating or damaged. Similarly, if a branch current is unexpectedly zero, a broken connection or a short circuit is a potential culprit.
6. Interpreting Results and Verification
Once you’ve obtained the equivalent resistance, it’s essential to interpret the results within the context of the original circuit. Does the calculated value make sense given the individual resistances and circuit configuration? A much larger equivalent resistance than expected might indicate an error in the calculation or circuit diagram interpretation. Conversely, a significantly smaller resistance might indicate a potential short circuit. To ensure accuracy, it’s often beneficial to perform a secondary calculation using a different approach or employing a different calculator to verify your results.
Example Table:
| Resistor | Resistance (Ω) | Type of Connection |
|---|---|---|
| R1 | 100 | Series with R2 |
| R2 | 200 | Series with R1, Parallel with R3 |
| R3 | 300 | Parallel with (R1+R2) |
Practical Applications of Series-Parallel Calculations in Electrical Engineering
Analyzing Complex Circuits
Series-parallel circuits form the backbone of many electrical systems. Understanding how to analyze them is fundamental to designing and troubleshooting anything from simple household appliances to intricate industrial control systems. The ability to reduce complex networks of resistors, capacitors, and inductors to their equivalent series or parallel forms simplifies circuit analysis immensely. This simplification allows engineers to predict circuit behavior under various operating conditions, ensuring proper functionality and safety.
Designing Power Distribution Networks
Power distribution systems, both large-scale (national grids) and small-scale (building wiring), frequently utilize series-parallel configurations to efficiently deliver power to different loads. Calculating voltage drops across different branches is crucial for ensuring that all loads receive the appropriate voltage and to prevent overloading of wires, leading to potential hazards like fires or equipment damage. Careful application of series-parallel calculations helps optimize the design for maximum efficiency and reliability.
Working with Lighting Systems
Many lighting systems employ series-parallel arrangements of light bulbs or LEDs. Understanding the interaction between components in these systems is essential for determining appropriate power supplies, ensuring uniform brightness, and minimizing energy waste. For instance, series-connected LEDs require a specific voltage for optimal operation, while parallel connections allow for independent control of individual lights.
Electronic Circuit Design
Series-parallel arrangements are ubiquitous in electronic circuit design. Resistors are commonly used in series to divide voltage, while parallel resistors are frequently used to lower the overall resistance of a circuit. Capacitors and inductors also find use in series-parallel configurations to control frequency response in filters and other signal processing circuits. Mastering series-parallel calculations is essential for designing circuits with the desired characteristics.
Troubleshooting Electrical Faults
When an electrical system malfunctions, the ability to systematically analyze the series-parallel relationships within the circuit is invaluable for effective troubleshooting. By measuring voltages and currents at various points in the circuit, and using series-parallel calculations, technicians can isolate the faulty component or section, leading to a quicker and more efficient repair process. This saves time and minimizes downtime.
Automotive Electrical Systems
Modern vehicles are complex systems with numerous electrical components interacting in series and parallel configurations. The starter motor circuit, for instance, is a classic example of a series circuit with high current draw requiring thick cables to minimize voltage drop. Lighting circuits typically utilize a parallel arrangement allowing for independent operation of headlights, taillights, and interior lights. Understanding these configurations is vital for automotive engineers designing new systems and technicians diagnosing malfunctions. A faulty component in a parallel system might cause only a partial failure, whereas a failure in a series system could cause a complete circuit shutdown. Consider the following table illustrating different scenarios:
| Circuit Type | Component Failure | Overall System Impact | Example in an Automotive System |
|---|---|---|---|
| Series | One bulb fails in a string of Christmas lights | Entire string goes dark | Failure of a component in the main power supply circuit for the engine control unit (ECU) could cause the engine to stop. |
| Parallel | One taillight bulb fails | Other taillights remain functional | A single headlight burning out doesn’t disable the other headlight. |
| Series-Parallel Combination | A fuse in a parallel branch blows | Only that branch is affected | Failure of a fuse in a circuit powering a single power window doesn’t affect other power windows or other electrical systems. |
Careful consideration of series and parallel configurations is critical for ensuring reliable and safe operation of automotive electrical systems. The design must account for varying current demands across different subsystems and the potential impact of component failures.
Advanced Features and Capabilities of Series-Parallel Calculators
7. Handling Complex Circuits and Component Variations
Series-parallel calculators excel beyond simple resistor combinations. Many advanced models offer capabilities to tackle circuits of considerable complexity, incorporating a wider array of components and considering the real-world variations in their values. This moves beyond the idealized theoretical calculations often found in introductory electronics texts.
7.1 Incorporating Capacitors and Inductors
While basic calculators may focus solely on resistors, advanced versions frequently include the ability to calculate equivalent impedance in AC circuits involving capacitors and inductors. This requires understanding of complex numbers and impedance calculations, which these calculators handle seamlessly. The user inputs the component values (capacitance, inductance, resistance) along with the frequency of the AC signal, and the calculator determines the total impedance of the series-parallel network. This is invaluable for analyzing filters, resonant circuits, and other AC applications.
7.2 Accounting for Component Tolerance
No two components are exactly identical. Manufacturers specify tolerances—the acceptable range of variation from the nominal value—for resistors, capacitors, and inductors. Advanced series-parallel calculators can factor in these tolerances to provide a range of possible outcomes for the equivalent resistance or impedance. This is crucial for determining the potential impact of component variations on circuit performance, helping engineers design for robustness and account for real-world uncertainties.
7.3 Analyzing Circuits with Multiple Branches and Loops
Simple series-parallel arrangements are relatively straightforward. However, many practical circuits involve multiple branches and loops, sometimes incorporating both series and parallel combinations within a larger network. Sophisticated series-parallel calculators employ efficient algorithms to solve these complex networks, handling Kirchhoff’s laws implicitly to determine the equivalent resistance or impedance, and sometimes even individual branch currents or voltages. This capability is essential for accurate analysis of more realistic circuit configurations.
7.4 Support for Different Units and Notation
A practical series-parallel calculator should support a variety of units (e.g., ohms, kiloohms, megaohms for resistance; farads, microfarads, picofarads for capacitance; henries, millihenries, microhenries for inductance) and allow users to input values using different notations (e.g., scientific notation, engineering notation). This flexibility saves users time and prevents errors related to unit conversion. A well-designed calculator will automatically handle unit conversions internally, presenting results in the user’s preferred units.
| Feature | Description |
|---|---|
| Complex Impedance Calculations | Handles capacitors and inductors, providing total impedance in AC circuits. |
| Tolerance Analysis | Accounts for component tolerances, providing a range of possible results. |
| Multiple Branch/Loop Support | Solves complex networks with multiple series and parallel combinations. |
| Unit Flexibility | Supports various units and input notations for seamless calculations. |
Troubleshooting Common Issues and Errors in Series-Parallel Calculations
8. Dealing with Incorrect Unit Conversions and Dimensional Consistency
One of the most frequent pitfalls in series-parallel calculations stems from inconsistencies in units and improper unit conversions. Remember, your calculations rely on dimensional homogeneity – all values must be expressed in compatible units for the equations to work correctly. For instance, mixing ohms with kiloohms or milliamps with amperes will lead to wildly inaccurate results.
Understanding the Importance of Consistent Units
Ohm’s Law (V=IR), and its derivations for series and parallel circuits, fundamentally require consistent units. If you use volts for voltage, you *must* use ohms for resistance and amperes for current. Any deviation will render your calculations meaningless. Even seemingly small inconsistencies can produce significant errors. Imagine calculating the total resistance of a circuit where one resistor is given in ohms and another in kiloohms. Without converting both to the same unit (say, ohms), your final answer will be drastically wrong.
Practical Strategies for Avoiding Unit Conversion Errors
To avoid this common problem, establish a consistent unit system at the outset and stick to it. A good practice is to convert all values to the base SI units (ohms, volts, amperes) before starting any calculations. Many calculators can handle conversions automatically, but it’s always best to double-check manually to avoid relying solely on technology. Carefully review your units at every step to ensure consistency. Using a table can help. For example:
| Component | Resistance (Ω) | Voltage (V) | Current (A) |
|---|---|---|---|
| Resistor R1 | 1000 | 5 | 0.005 |
| Resistor R2 | 2200 | 11 | 0.005 |
| Resistor R3 | 3300 | 16.5 | 0.005 |
Notice how all values are expressed consistently in ohms, volts, and amperes. This tabular approach facilitates organized calculations and helps you spot inconsistencies easily. Remember, accuracy begins with careful attention to detail—starting with the units.
Finally, if you’re dealing with prefixes like kilo (k), milli (m), or mega (M), remember to include the appropriate multiplicative factor (103, 10-3, 106 respectively) in your calculations. Failing to do so is a common cause of errors. Always use a conversion chart if you are unsure about converting prefixes.
Choosing the Right Series-Parallel Calculator for Your Needs
9. Understanding Advanced Features and Their Applications
Beyond the basic series and parallel calculations, many advanced series-parallel calculators offer a range of features designed to streamline complex circuit analysis. Understanding these features and their applications is crucial for selecting the right tool for your specific needs. Let’s delve into some key advanced capabilities.
9.1 Delta-Wye (Δ-Y) and Wye-Delta (Y-Δ) Conversions:
Many circuits utilize delta (Δ) or wye (Y) configurations. These calculators can quickly convert between these configurations, simplifying analysis and enabling easier calculations of equivalent resistance. This is invaluable when dealing with three-phase power systems or complex network topologies where direct calculation can be cumbersome. This conversion is crucial for simplifying complex circuit analysis and optimizing designs.
9.2 Complex Impedance Calculations:
Beyond simple resistances, real-world circuits involve components like capacitors and inductors which introduce reactance and impedance (a combination of resistance and reactance). Advanced calculators can handle complex impedance calculations, dealing with both magnitude and phase angle of impedances. This is particularly useful for analyzing AC circuits and understanding power factor considerations.
9.3 Network Analysis Capabilities:
Some advanced series-parallel calculators go beyond individual components and offer features for analyzing complete networks. These features may include nodal analysis or mesh analysis capabilities, allowing for the efficient determination of voltages and currents in more complex multi-loop circuits. These capabilities eliminate the need for manual application of Kirchhoff’s laws, saving time and reducing the risk of calculation errors.
9.4 Data Storage and Recall:
The ability to store and recall previously calculated values, circuit configurations, and component parameters can significantly improve workflow efficiency. This is especially beneficial when performing repetitive calculations or analyzing variations of a circuit design. This feature saves time and minimizes the potential for data entry errors.
The table below summarizes these features and their relevance:
| Advanced Feature | Application | Benefit |
|---|---|---|
| Delta-Wye (Δ-Y) Conversion | Three-phase power systems, complex networks | Simplified analysis, easier resistance calculation |
| Complex Impedance Calculation | AC circuits | Accurate impedance and phase angle determination |
| Network Analysis (Nodal/Mesh) | Multi-loop circuits | Efficient voltage and current determination |
| Data Storage and Recall | Repetitive calculations, design variations | Improved workflow, reduced errors |
Choosing a calculator with these advanced features depends on the complexity of your circuit analysis needs. While a basic calculator might suffice for simple circuits, more sophisticated tools are necessary for tackling complex networks or AC circuits involving reactance.
Series-Parallel Calculator: A Powerful Tool for Circuit Analysis
Series-parallel calculators are invaluable tools for electrical engineers, technicians, and students alike. These calculators simplify the often complex process of determining the equivalent resistance, capacitance, or inductance in circuits containing both series and parallel components. Their ability to handle multiple components simultaneously drastically reduces calculation time and minimizes the risk of human error inherent in manual calculations, especially in circuits with numerous elements. This leads to increased efficiency and accuracy in circuit design, analysis, and troubleshooting.
Beyond basic calculations, many advanced series-parallel calculators offer features such as the ability to handle complex impedances (accounting for both resistance and reactance), allowing for analysis of AC circuits. This expanded functionality makes them indispensable for working with more sophisticated electrical systems. The immediate feedback provided by these calculators allows for iterative design and optimization, enabling users to quickly explore different circuit configurations and component values to achieve desired performance characteristics. Ultimately, the series-parallel calculator serves as a critical instrument for streamlining the design process and ensuring the reliability of electrical systems.
People Also Ask About Series-Parallel Calculators
What is a series-parallel circuit?
Understanding Series and Parallel Combinations
A series-parallel circuit combines both series and parallel arrangements of components. In a series connection, components are connected end-to-end, sharing the same current. In a parallel connection, components are connected across each other, sharing the same voltage. A series-parallel circuit integrates both types, resulting in a more complex arrangement where the total resistance, capacitance, or inductance depends on the specific configuration of series and parallel branches.
How do I calculate the total resistance in a series-parallel circuit?
Calculating Equivalent Resistance
Calculating the total resistance requires a systematic approach. First, simplify the parallel branches to find their equivalent resistance. This is done using the parallel resistance formula (1/Rtotal = 1/R1 + 1/R2 + …). Then, combine these equivalent resistances with any series resistances using the series resistance formula (Rtotal = R1 + R2 + …). This process of simplifying parallel sections and then combining with series elements is repeated until a single equivalent resistance for the entire circuit is obtained.
Can series-parallel calculators handle complex impedances?
Working with AC Circuits
Many advanced series-parallel calculators can indeed handle complex impedances. These calculators account for both the resistive and reactive components of impedance (resistance and reactance, respectively), which are crucial for analyzing AC circuits containing inductors and capacitors. This capability allows for accurate calculation of total impedance, phase angles, and other important parameters in alternating current systems.
Are there free series-parallel calculators available online?
Finding Online Resources
Yes, numerous free online series-parallel calculators are readily available. A simple web search will reveal several options offering varying levels of functionality. These online tools provide a convenient and accessible alternative to dedicated software or manual calculations, making circuit analysis more efficient for many users. However, it is important to verify the accuracy and reliability of any online calculator before using it for critical applications.
